Suction Catheter

Suction Catheter

EasyThru Closed Suction Catheter System 24 hours / 72 hours Anaesthesia Product

Material:   PU Sleeve, PVC Suction Catheter
Size:          Fr8, Fr10, Fr12, Fr14, Fr16
Usage:      ICU For Sputum Suction
Sterilization: E.O. Gas, Single Use Only
Type:         24 Hours, 72 Hours
Shelf Time: 5 Years
Certificates: CE ISO13485, FDA
Category: Suction Catheter

    EasyThru Closed Suction Catheter provides safe and easy access for secretion removal from the airway to minimize
    infection and maximize diffusion of oxygen through the lung.

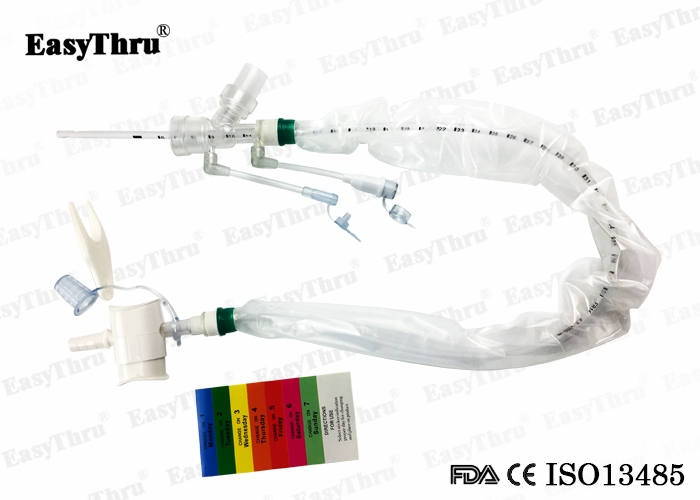

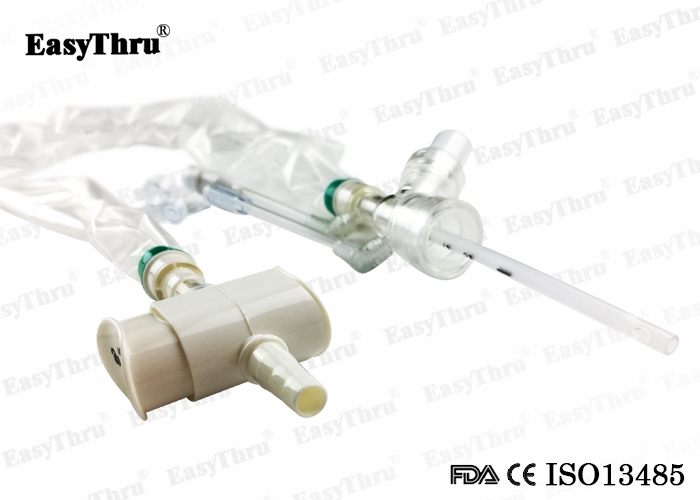

    EasyThru® Closed Suction Catheter System 24 hours / 72 hours



    What is Closed Suction System ?



    The Closed Suction System is intended for removal of secretion in the lower respiratory track in patients receiving prolonged mechanical ventilation. The filter protected system is connected to the artificial airway of the patient ( Endotracheal or Tracheostomy tube) and to the ventilation circuit. It is used over a period of 24 hours,72 hours ( depending on the patient requirement ).



    Product size range: Fr8, Fr10, Fr12, Fr14, Fr16

    Packaging: Blister individually, 100 pcs/ carton



    When and why to use closed suction system ?


    1: Traditional secretion suction should cut off patients breathing airway, so nurse has to finish suction in 30 seconds. If use closed suction system, DO NOT need to cut off patient oxygen airway.

    2: Suppose closed suction system is reused for 48 hours, the average cost is almost the same as using traditional suction catheters. For example: If a ICU patient need extract secretion 30 times a day on average, 48 hours is 60 times, it means he need to use 60 pcs traditional suction catheters. Lets suppose closed suction system cost USD4.5 per piece, average cost is USD0.075 each time.

    3: It reduce cross-infection during extraction secretion

    In the closed suction system, each suction catheter is covered by a sleeve. Patients secretion will not splash when pull out catheter from patients end. So it reduce cross-infection between patients and nurses in the same room.

    Product Description

                                             -Closed Suction Catheter Standard Form
     Clour Size Products‘ Specification & Description Tube OD   Length of Tube Product Code
    Black Adult/72H/Endotracheal Double Swivel Elbow Endotracheal, Push Switch&Luer Lock Flex Tube 10Fr (3.35mm) 600mm YL-721060
    White Adult/72H/Endotracheal Double Swivel Elbow Endotracheal, Push Switch&Luer Lock Flex Tube 12Fr (4.05mm)  600mm YL-721260
    Green Adult/72H/Endotracheal Double Swivel Elbow Endotracheal, Push Switch&Luer Lock Flex Tube 14Fr (4.75mm) 600mm YL-721460
    Orange Adult/72H/Endotracheal Double Swivel Elbow Endotracheal, Push Switch&Luer Lock Flex Tube 16Fr (5.45mm) 600mm YL-721660






    closed suction catheter system
    The advantages of our products ?

    Our product VS Others

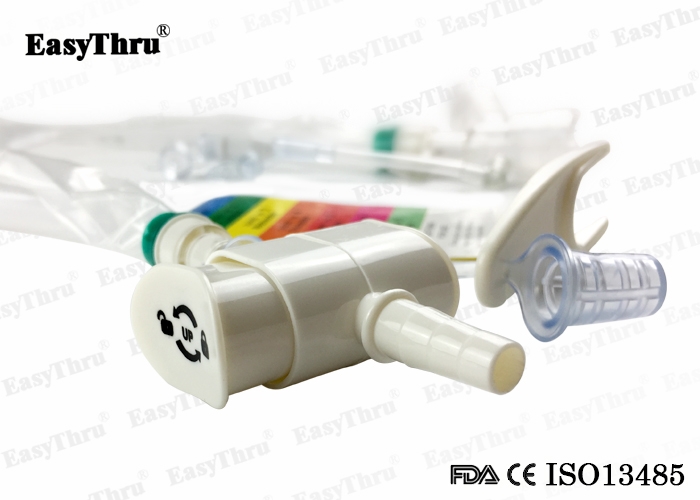

    1: Our suction control valve has lock, more safety.

    2: Our inside ring of the lock is made from silicone, which has good bio-compatibility, non-toxic



    EasyThru Closed Suction Catheter System 24 hours / 72 hours  Anaesthesia Product









    1: Our sleeve is made from

    PU, which is tactile, resistant, durable, and clear. Easy to see catheter mark printing.



    2: Others is made from PE, it is not tactile as ours, it may be broken if sucking secretion over 60 times.



    EasyThru Closed Suction Catheter System 24 hours / 72 hours  Anaesthesia Product



    EasyThru Closed Suction Catheter System 24 hours / 72 hours  Anaesthesia Product





    1: The blue cap is user friendly design, it feels more comfortable when injection medicine.









    EasyThru Closed Suction Catheter System 24 hours / 72 hours  Anaesthesia Product



    EasyThru Closed Suction Catheter System 24 hours / 72 hours  Anaesthesia Product





    1: Scale mark print clearly

    though the catheter, and it is easy to see how long catheter insert into patient’s end through the clear tube window, it save nurse time.



    2: Others’ is difficult to read size..

    EasyThru Closed Suction Catheter System 24 hours / 72 hours  Anaesthesia Product
