Endotracheal tube

Endotracheal tube

Cuffed Disposable Reinforced Tracheostomy Tube Anaesthesia Products

Brand Name:  EasyThru
Certification:  CE  ISO13485
Model Number:  5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm
Material:  Non Toxic PVC Medical Grade
Type:  Armorced Trachostomy Tube With Cuff
Sterilization:  E.O. Gas, Single Use Only

Category: Endotracheal tube

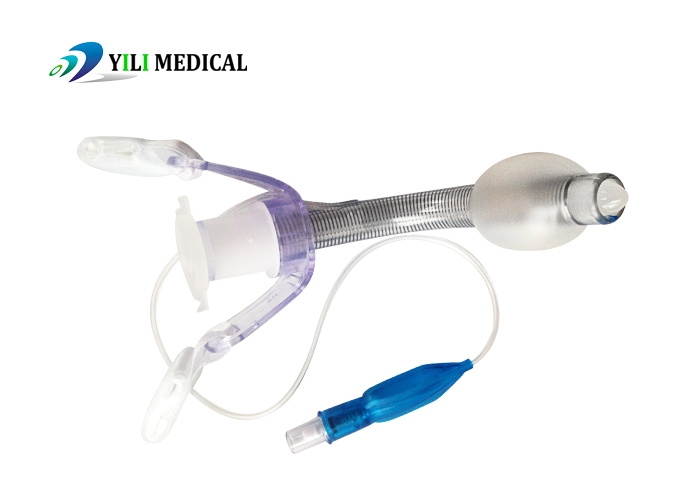

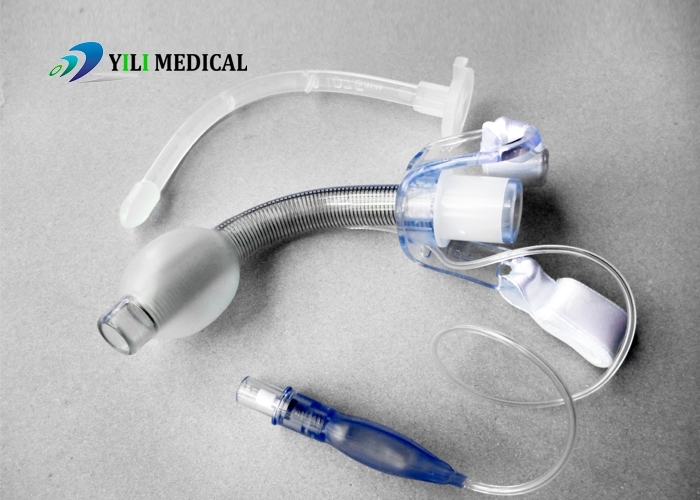

    Disposable Reinforced Tracheostomy Tube Cuffed



    Reinforced medical tracheostomy tube has metal spring inside wall to support catheter avoid flattening by pressure, maintain airway for patients, safe.



    A simple tracheostomy tube consists of outer cannula, a obturator , balloon, connector and tie band. Obturator is used guide outer cannula in right position during inserting. Inflatable balloon use to remains placement. Fasten the outer part of tracheal incision by tie band.



    Sizes: 5.0mm-9.0mm

    Type: Pipe,Drainage Tubes & Containers

    Properties: Medical Polymer Materials & Products

    Place of Origin: Shanghai,China (Mainland)

    Brand Name: EasyThru or OEM



    Features:


    1. Made of non-toxic, medical-grade PVC
    2. Full-length radio opaque line

    Tracheostomy Tube Cuffed



    Description:

    1. Designed to establish and mantain an airway in case of an emgency

    2. Cuff ensures effective sealing and atraumatic intubation and extubation

    3. Rounded and smooth tip of the obturator minimizes tissue injury during intubation

    4. Blister package or peelable pouch as per request

    5. Sterile by EO, single use

    6. Available with CE and ISO certificates



    Size Tube I.D Tube O.D Tube Length A Part ±5mm Length B Part±5mm (A+B+C) Balloon I.D.(after inflation)mm±15%)
    overall length
    mm
    3 3 4.2 28 10 55 12
    3.5 3.5 4.9 28 10 55 12
    4 4 5.5 28 10 55 14
    4.5 4.5 6.2 28 10 55 14
    5 5 6.9 30 10 65 16
    5.5 5.5 7.5 30 10 70 16
    6 6 8.2 30 10 70 18
    6.5 6.5 8.7 31 12 80 18
    7 7 9.3 31 12 86 20
    7.5 7.5 10 36 16 88 20
    8 8 10.7 36 16 92 22
    8.5 8.5 11.3 36 16 95 22
    9 9 12 36 16 98 22
    9.5 9.5 12.7 36 16 98 22
    10 10 13.3 36 16 98 22
    Tolerance requirement:I.D≤ 6.0 +0.15mm O.D≤ 8.2 +0.15mm
    I.D≥ 6.5 +0.20mm O.D≥ 8.7 +0.20mm

    Cuffed Disposable Reinforced Tracheostomy Tube Anaesthesia Products
