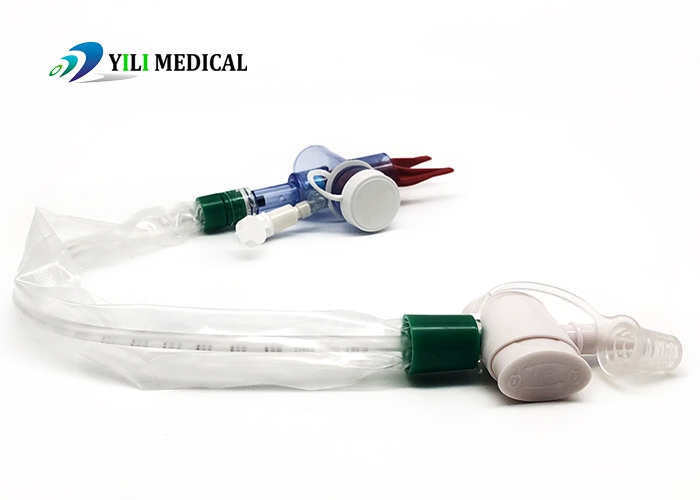

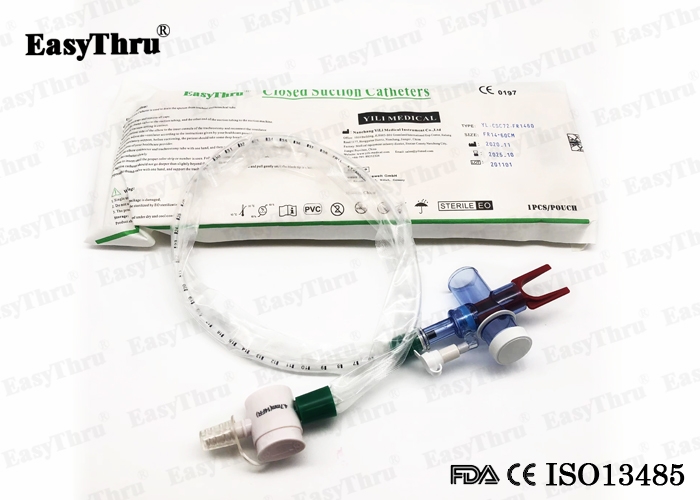

EasyThru® Atomization Style Closed Suction Catheter 24 hours / 72 hours
Product name: closed suction catheter System
Product size range: FR8, Fr10, Fr12, Fr14, Fr16
Packaging: Blister individually, 100pcs/ carton
Port: Shanghai or Guangzhou
This design enables the sputum of mechanical ventilation patients to be safely pumped out through clear airway secretions, while maintaining ventilation and patient‘s blood oxygen saturation throughout the sputum suction process.
In the process of nursing sputum suction, patients can conduct atomization operation while ensuring oxygen inhalation. Ensure safety first.
The atomized closed sputum suction tube is an easy to use sputum suction tube for severe patients, which can prevent cross infection.
Main product structures:

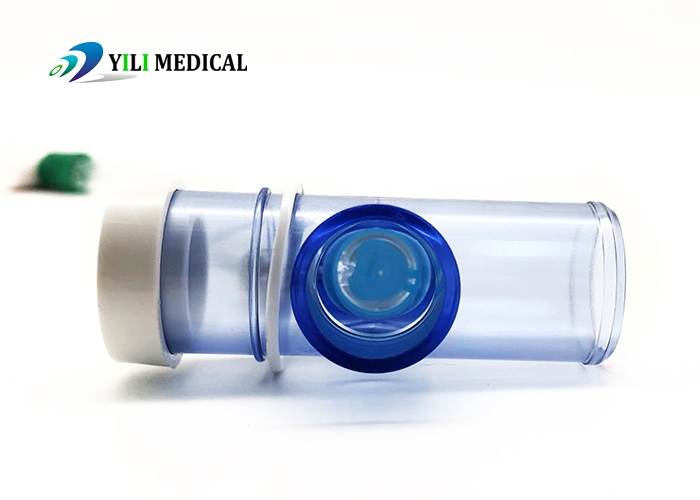

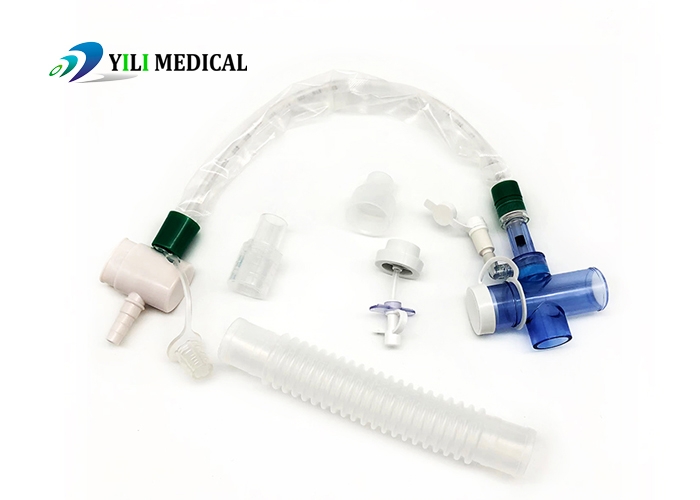

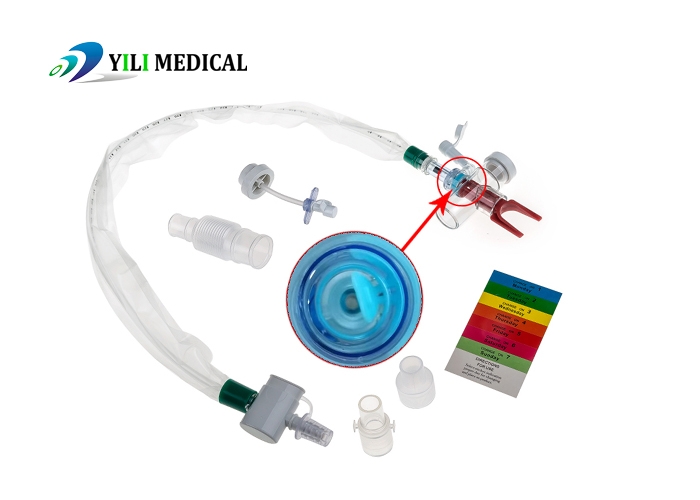

The main parts include T-piece Endotracheal(or Tracheostomy), Swivel Adaper(may be used between the endo/trach tube), Flex catheter mount, PU Sleeve cover, PVC Suction Catheter, Flushing irrigation port, Medicine Injection port, Thumb control valve, Suction Tube Connector and so on.
What is EasyThru Closed Suction System ?
The Closed Suction System is intended for removal of secretion in the lower respiratory track in patients receiving prolonged mechanical ventilation. The filter protected system is connected to the artificial airway of the patient ( Endotracheal or Tracheostomy tube) and to the ventilation circuit. It is used over a period of 24 hours,72 hours ( depending on the patient requirement ).
1. Select appropriate size catheter.
2. Attach thumb control valve to suction tubing.
3. Depress and hold thumb valve and simultaneously adjust vacuum regulator to desired level.a
4. Release thumb control valve and attach catheter between patient and the ventilator circuit.
5. Connect patient end connector with ET Tube ( Or Tracheotomy tube), Connect ventilator end connector with Breathing tube Catheter mount for breathing. Connect negative pressure end connector with Suction line.
|Colour||Size||Products‘ Specification & Description||Tube OD||Length of Tube||Product Code|
|Black||Adult/72H/Endotracheal||Push Switch & Luer Lock Type Tracheostomy, Flex Tube||10Fr (3.35mm)||600mm||YL-721060|
|White||Adult/72H/Endotracheal||Push Switch & Luer Lock Type Tracheostomy, Flex Tube||12Fr (4.05mm)||600mm||YL-721260|
|Green||Adult/72H/Endotracheal||Push Switch & Luer Lock Type Tracheostomy, Flex Tube||14Fr (4.75mm)||600mm||YL-721460|
|orange||Adult/72H/Endotracheal||Push Switch & Luer Lock Type Tracheostomy, Flex Tube||16Fr (5.45mm)||600mm||YL-721660|
Product characteristics and structure:
2.Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.

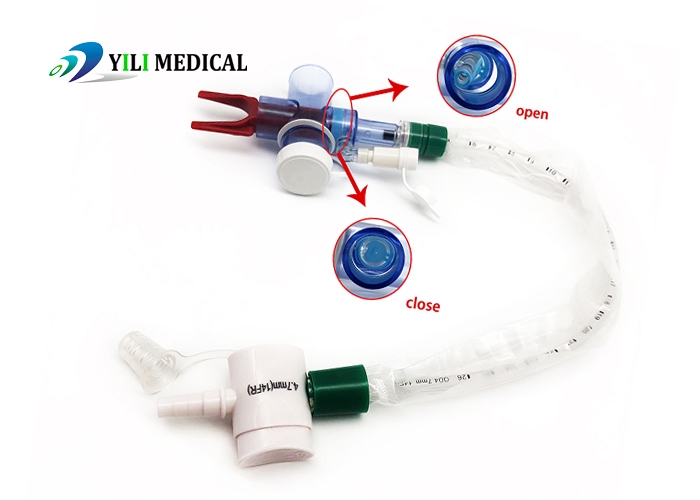

3.Double rotary joint or push-pull switch
15mm double rotary joint
Designed to equip the wedge with both disconnecting and clipping functions
5.For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
6.Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-infection.
